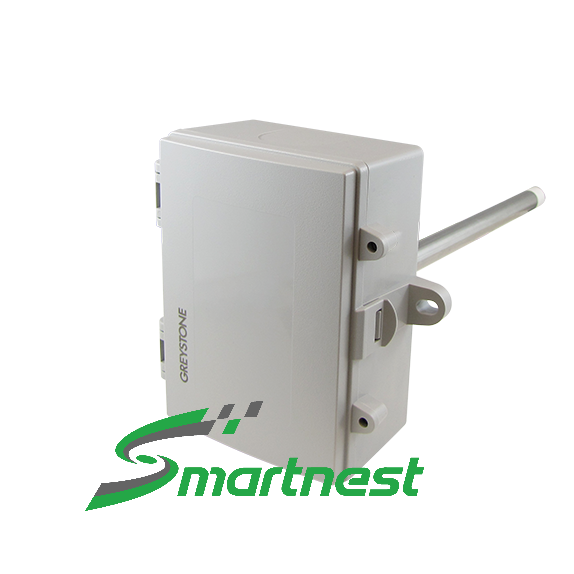

HTDT Series Greystone – Duct Humidity/Temperature Transmitter- Cảm biến nhiệt độ và độ ẩm ống gió
Dòng cảm biến độ ẩm / nhiệt độ ống gió được thiết kế chuyên dụng để giám sát đồng thời nhiệt độ và độ ẩm trong hệ thống HVAC, AHU và đường ống gió. Thiết bị cung cấp tín hiệu đầu ra analog ổn định, độ chính xác cao, phù hợp cho các ứng dụng kiểm soát thông gió, điều hòa không khí, phòng sạch và hệ thống quản lý tòa nhà BMS.
🔹 Model: HTDT
🔹 Dải đo độ ẩm: 0…100% RH
🔹 Dải đo nhiệt độ: -40…60°C
🔹 Tín hiệu đầu ra: 4…20 mA / 0…10V
🔹 Nguồn cấp: 15…35V DC / 24V AC
🔹 Chiều dài que dò: 230 mm
Tính năng nổi bật: Cảm biến độ ẩm điện dung có độ chính xác cao kết hợp đầu dò nhiệt độ ổn định lâu dài, thiết kế que dò chuyên dụng cho lắp đặt trong ống gió giúp phản hồi nhanh với sự thay đổi môi trường. Vỏ bảo vệ chắc chắn, khả năng chống bụi và chống ẩm tốt, hỗ trợ nhiều tín hiệu đầu ra analog giúp dễ dàng tích hợp với hệ thống BMS, AHU và điều khiển HVAC trung tâm.
Đặc tính sản phẩm:
- Highly stable RH sensor element
- Humidity range: 0-100%
- Accuracy available 2%, 3%, & 5%
- Precision Platinum RTD for Temperature
- AC/DC operation
- Polycarbonate weatherproof enclosure.
Tài liệu sản phẩm:
| Catalog |
| Chứng nhận |
| Hợp chuẩn |
| Lắp đặt |
| Thông số kỹ thuật |
Các model thông dụng:
| STT | Model | Mô tả sản phẩm | Xuất xứ |
| 1 | HTDTB212A001 | Duct Humidity/Temperature Transmitter, 2%, Dual 4 – 20 mA,0 – 35 C (32 – 95 F) | GreyStone/Canada |
| 2 | HTDTB212A002 | Duct Humidity/Temperature Transmitter, 2%, Dual 4 – 20 mA,0 – 50 C (32 – 122 F) | GreyStone/Canada |
| 3 | HTDTB212A006 | Duct Humidity/Temperature Transmitter, 2%, Dual 4 – 20 mA, -50 C – 50 C (-58 – 122 F) | GreyStone/Canada |
| 4 | HTDTB212D001 | Duct Humidity/Temperature Transmitter, 2%, Dual 0 – 5 Vdc,0 – 35 C (32 – 95 F) | GreyStone/Canada |
| 5 | HTDTB212D002 | Duct Humidity/Temperature Transmitter, 2%, Dual 0 – 5 Vdc,0 – 50 C (32 – 122 F) | GreyStone/Canada |
| 6 | HTDTB212D006 | Duct Humidity/Temperature Transmitter, 2%, Dual 0 – 5 Vdc, -50 C – 50 C (-58 – 122 F) | GreyStone/Canada |
| 7 | HTDTB212E001 | Duct Humidity/Temperature Transmitter, 2%, Dual 0 – 10 Vdc,0 – 35 C (32 – 95 F) | GreyStone/Canada |
| 8 | HTDTB212E002 | Duct Humidity/Temperature Transmitter, 2%, Dual 0 – 10 Vdc,0 – 50 C (32 – 122 F) | GreyStone/Canada |
| 9 | HTDTB212E006 | Duct Humidity/Temperature Transmitter, 2%, Dual 0 – 10 Vdc, -50 C – 50 C (-58 – 122 F) | GreyStone/Canada |
| 10 | HTDTB312A001 | Duct Humidity/Temperature Transmitter, 3%, Dual 4 – 20 mA,0 – 35 C (32 – 95 F) | GreyStone/Canada |
| 11 | HTDTB312A002 | Duct Humidity/Temperature Transmitter, 3%, Dual 4 – 20 mA,0 – 50 C (32 – 122 F) | GreyStone/Canada |
| 12 | HTDTB312A006 | Duct Humidity/Temperature Transmitter, 3%, Dual 4 – 20 mA, -50 C – 50 C (-58 – 122 F) | GreyStone/Canada |
| 13 | HTDTB312D001 | Duct Humidity/Temperature Transmitter, 3%, Dual 0 – 5 Vdc,0 – 35 C (32 – 95 F) | GreyStone/Canada |
| 14 | HTDTB312D002 | Duct Humidity/Temperature Transmitter, 3%, Dual 0 – 5 Vdc,0 – 50 C (32 – 122 F) | GreyStone/Canada |
| 15 | HTDTB312D006 | Duct Humidity/Temperature Transmitter, 3%, Dual 0 – 5 Vdc, -50 C – 50 C (-58 – 122 F) | GreyStone/Canada |
| 16 | HTDTB312E001 | Duct Humidity/Temperature Transmitter, 3%, Dual 0 – 10 Vdc,0 – 35 C (32 – 95 F) | GreyStone/Canada |
| 17 | HTDTB312E002 | Duct Humidity/Temperature Transmitter, 3%, Dual 0 – 10 Vdc,0 – 50 C (32 – 122 F) | GreyStone/Canada |
| 18 | HTDTB312E006 | Duct Humidity/Temperature Transmitter, 3%, Dual 0 – 10 Vdc, -50 C – 50 C (-58 – 122 F) | GreyStone/Canada |
| 19 | HTDTB512A001 | Duct Humidity/Temperature Transmitter, 5%, Dual 4 – 20 mA,0 – 35 C (32 – 95 F) | GreyStone/Canada |
| 20 | HTDTB512A002 | Duct Humidity/Temperature Transmitter, 5%, Dual 4 – 20 mA,0 – 50 C (32 – 122 F) | GreyStone/Canada |
| 21 | HTDTB512A006 | Duct Humidity/Temperature Transmitter, 5%, Dual 4 – 20 mA, -50 C – 50 C (-58 – 122 F) | GreyStone/Canada |
| 22 | HTDTB512D001 | Duct Humidity/Temperature Transmitter, 5%, Dual 0 – 5 Vdc,0 – 35 C (32 – 95 F) | GreyStone/Canada |
| 23 | HTDTB512D002 | Duct Humidity/Temperature Transmitter, 5%, Dual 0 – 5 Vdc,0 – 50 C (32 – 122 F) | GreyStone/Canada |
| 24 | HTDTB512D006 | Duct Humidity/Temperature Transmitter, 5%, Dual 0 – 5 Vdc, -50 C – 50 C (-58 – 122 F) | GreyStone/Canada |
| 25 | HTDTB512E001 | Duct Humidity/Temperature Transmitter, 5%, Dual 0 – 10 Vdc,0 – 35 C (32 – 95 F) | GreyStone/Canada |
| 26 | HTDTB512E002 | Duct Humidity/Temperature Transmitter, 5%, Dual 0 – 10 Vdc,0 – 50 C (32 – 122 F) | GreyStone/Canada |
| 27 | HTDTB512E006 | Duct Humidity/Temperature Transmitter, 5%, Dual 0 – 10 Vdc, -50 C – 50 C (-58 – 122 F) | GreyStone/Canada |
| 28 | HTDTF212A001 | Duct Humidity/Temperature Transmitter, 2%, Dual 4 – 20 mA,0 – 35 C (32 – 95 F), M16 thread adaptor and cable gland | GreyStone/Canada |
| 29 | HTDTF212A002 | Duct Humidity/Temperature Transmitter, 2%, Dual 4 – 20 mA,0 – 50 C (32 – 122 F), M16 thread adaptor and cable gland | GreyStone/Canada |
| 30 | HTDTF212A006 | Duct Humidity/Temperature Transmitter, 2%, Dual 4 – 20 mA, -50 C – 50 C (-58 – 122 F), M16 thread adaptor and cable gland | GreyStone/Canada |
| 31 | HTDTF212D001 | Duct Humidity/Temperature Transmitter, 2%, Dual 0 – 5 Vdc,0 – 35 C (32 – 95 F), M16 thread adaptor and cable gland | GreyStone/Canada |
| 32 | HTDTF212D002 | Duct Humidity/Temperature Transmitter, 2%, Dual 0 – 5 Vdc,0 – 50 C (32 – 122 F), M16 thread adaptor and cable gland | GreyStone/Canada |
| 33 | HTDTF212D006 | Duct Humidity/Temperature Transmitter, 2%, Dual 0 – 5 Vdc, -50 C – 50 C (-58 – 122 F), M16 thread adaptor and cable gland | GreyStone/Canada |
| 34 | HTDTF212E001 | Duct Humidity/Temperature Transmitter, 2%, Dual 0 – 10 Vdc,0 – 35 C (32 – 95 F), M16 thread adaptor and cable gland | GreyStone/Canada |
| 35 | HTDTF212E002 | Duct Humidity/Temperature Transmitter, 2%, Dual 0 – 10 Vdc,0 – 50 C (32 – 122 F), M16 thread adaptor and cable gland | GreyStone/Canada |
| 36 | HTDTF212E006 | Duct Humidity/Temperature Transmitter, 2%, Dual 0 – 10 Vdc, -50 C – 50 C (-58 – 122 F), M16 thread adaptor and cable gland | GreyStone/Canada |
| 37 | HTDTF312A001 | Duct Humidity/Temperature Transmitter, 3%, Dual 4 – 20 mA,0 – 35 C (32 – 95 F), M16 thread adaptor and cable gland | GreyStone/Canada |
| 38 | HTDTF312A002 | Duct Humidity/Temperature Transmitter, 3%, Dual 4 – 20 mA,0 – 50 C (32 – 122 F), M16 thread adaptor and cable gland | GreyStone/Canada |
| 39 | HTDTF312A006 | Duct Humidity/Temperature Transmitter, 3%, Dual 4 – 20 mA, -50 C – 50 C (-58 – 122 F), M16 thread adaptor and cable gland | GreyStone/Canada |
| 40 | HTDTF312D001 | Duct Humidity/Temperature Transmitter, 3%, Dual 0 – 5 Vdc,0 – 35 C (32 – 95 F), M16 thread adaptor and cable gland | GreyStone/Canada |
| 41 | HTDTF312D002 | Duct Humidity/Temperature Transmitter, 3%, Dual 0 – 5 Vdc,0 – 50 C (32 – 122 F), M16 thread adaptor and cable gland | GreyStone/Canada |
| 42 | HTDTF312D006 | Duct Humidity/Temperature Transmitter, 3%, Dual 0 – 5 Vdc, -50 C – 50 C (-58 – 122 F), M16 thread adaptor and cable gland | GreyStone/Canada |
| 43 | HTDTF312E001 | Duct Humidity/Temperature Transmitter, 3%, Dual 0 – 10 Vdc,0 – 35 C (32 – 95 F), M16 thread adaptor and cable gland | GreyStone/Canada |
| 44 | HTDTF312E002 | Duct Humidity/Temperature Transmitter, 3%, Dual 0 – 10 Vdc,0 – 50 C (32 – 122 F), M16 thread adaptor and cable gland | GreyStone/Canada |
| 45 | HTDTF312E006 | Duct Humidity/Temperature Transmitter, 3%, Dual 0 – 10 Vdc, -50 C – 50 C (-58 – 122 F), M16 thread adaptor and cable gland | GreyStone/Canada |
| 46 | HTDTF512A001 | Duct Humidity/Temperature Transmitter, 5%, Dual 4 – 20 mA,0 – 35 C (32 – 95 F), M16 thread adaptor and cable gland | GreyStone/Canada |
| 47 | HTDTF512A002 | Duct Humidity/Temperature Transmitter, 5%, Dual 4 – 20 mA,0 – 50 C (32 – 122 F), M16 thread adaptor and cable gland | GreyStone/Canada |
| 48 | HTDTF512A006 | Duct Humidity/Temperature Transmitter, 5%, Dual 4 – 20 mA, -50 C – 50 C (-58 – 122 F), M16 thread adaptor and cable gland | GreyStone/Canada |
| 49 | HTDTF512D001 | Duct Humidity/Temperature Transmitter, 5%, Dual 0 – 5 Vdc,0 – 35 C (32 – 95 F), M16 thread adaptor and cable gland | GreyStone/Canada |
| 50 | HTDTF512D002 | Duct Humidity/Temperature Transmitter, 5%, Dual 0 – 5 Vdc,0 – 50 C (32 – 122 F), M16 thread adaptor and cable gland | GreyStone/Canada |
| 51 | HTDTF512D006 | Duct Humidity/Temperature Transmitter, 5%, Dual 0 – 5 Vdc, -50 C – 50 C (-58 – 122 F), M16 thread adaptor and cable gland | GreyStone/Canada |
| 52 | HTDTF512E001 | Duct Humidity/Temperature Transmitter, 5%, Dual 0 – 10 Vdc,0 – 35 C (32 – 95 F), M16 thread adaptor and cable gland | GreyStone/Canada |
| 53 | HTDTF512E002 | Duct Humidity/Temperature Transmitter, 5%, Dual 0 – 10 Vdc,0 – 50 C (32 – 122 F), M16 thread adaptor and cable gland | GreyStone/Canada |
| 54 | HTDTF512E006 | Duct Humidity/Temperature Transmitter, 5%, Dual 0 – 10 Vdc, -50 C – 50 C (-58 – 122 F), M16 thread adaptor and cable gland | GreyStone/Canada |
